| Brand Name : | SAIC Hongyan |
| Model Number : | Jiebao 180HP 4X2 Standard Version |
| Price : | To be Negotiated |
| Payment Terms : | T/T |
| Supply Ability : | 100 per month |
| Delivery Time : | 5-7 days |
SAIC Hongyan Jiebao Heavy Truck 180HP 4X2 Standard Version
There is a strong demand for small dump trucks in urban and rural road maintenance, building materials and home appliance transportation, muck transfer, grain transportation, coal transportation and small engineering construction. The Jaypar dump truck launched by SAIC Hongyan inherited the excellent gene of SAIC Hongyan's "King of Engineering", integrated Hongyan's unique technology into the "small body", and became the "King of Small Vehicles" in the field of dump trucks. The whole vehicle of Hongyan Jiebao dump truck adopts IVECO heavy truck technology, matched with SAIC Power 4/7H engine + FAST 8/10 gear transmission + lightweight 385/435 drive axle, with strong power and high transmission efficiency. The engine it carries is jointly developed by Ricardo, with a maximum horsepower of 180Ps and a maximum torque of 600N m. The engine is equipped with a high-pressure common rail fuel system, and the fuel injection pressure reaches 180-200MPa, which makes the combustion more complete. The engine has also passed the 30,000-hour bench test to ensure the stability of the vehicle.
| SAIC Hongyan Jiebao Heavy Truck 280HP 4X2 composite Version 4.8meter Dump Truck | SAIC Hongyan Jiebao Heavy Truck 180HP 4X2 Standard Version 4.2meter Dump Truck | |
| Main Parameter | ||
| Model | CQ3186AMDG421 | CQ3186AKDG381 |
| Drive form | 4x2 | 4x2 |
| Wheelbase(mm) | 3825 | 3825 |
| Length(meter) | 7.48 | 6.63 |
| Width(meter) | 2.4 | 2.55 |
| Height(meter) | 2.91 | 2.78 |
| Front wheel base(mm) | 1940 | 1930 |
| Rear wheel base(mm) | 1750 | 1860 |
| Vehicle weight(ton) | 8.19 | 8.18 |
| Rated load(ton) | 9.615 | 9.625 |
| Total mass(ton) | 18 | 18 |
| Tonnage class | Heavy Truck | Mid Truck |
| Approach angle (degree) | 22 | 22 |
| Departure angle(degree) | 18 | 18 |
| Place of origin | Chongqing | Chongqing |
| Application market | Mining Engineering | Engineering transportation |
| Engine parameters | ||
| Engine model | SC7H280Q5 | SC4H180Q5 |
| Engine brand | Shangchai | Shangchai |
| Number of cylinders | 6 | 4 |
| Fuel type | Diesel | Diesel |
| Displacement | 6.44L | 4.295L |
| Emission Standards | National V | National V |
| Maximum horsepower(HP) | 280 | 180 |
| Maximum output power(KW) | 205 | 132 |
| Maximum torque | 1160N.m | 660N.m |
| Maximum torque speed | 1200-1600rpm | 1900rpm |
| Rated speed | 2300rpm | 2300rpm |
| Engine form | In-line, electronically controlled common rail, four valves, supercharged and intercooled | in-line, electric control system |
| Cargo parameters | ||
| Cargo length (meter) | 4.8 | 4.2 |
| Cargo width | 2.2 | 2.3 |
| Cargo height | 0.6 | 0.8 |
| Cargo form | self-unloading | self-unloading |
| Cab parameters | ||
| Cab | Flat top | Flat top |
| Cab suspension | Four-point airbag suspension | Four-point airbag suspension |
| Cab lift | Electric | Electric |
| Driver's seat form | Airbag Shock Absorbing Seat | Airbag Shock Absorbing Seat |
| Gearbox parameters | ||

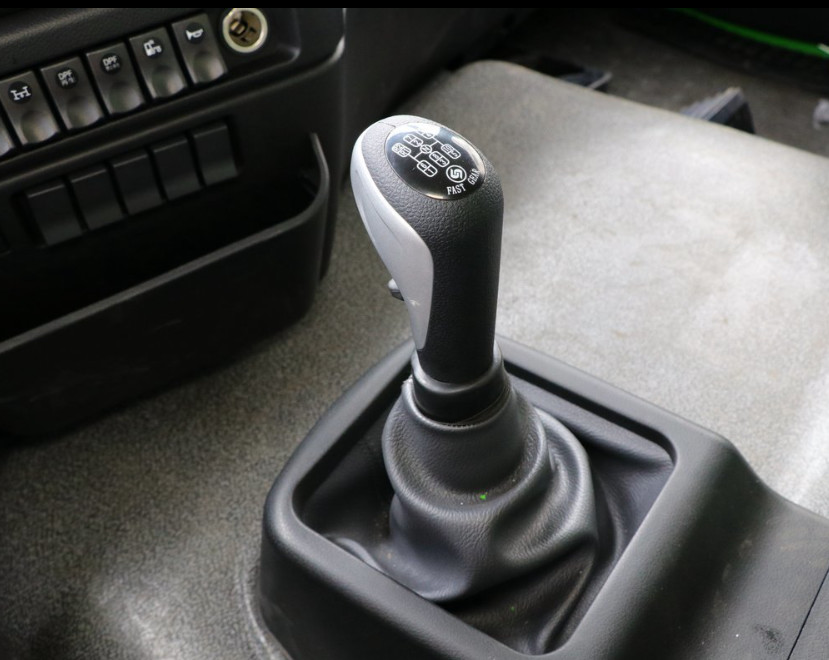

| Gearbox model | Fastgear 10JSD120TB | Fastgear 8JS85TE |
| Gearbox brand | Fastgear | Fastgear |
| Forward gear | 10 | 8 |
| Number of reverse gears | 2 | 2 |
| Fuel tank | ||
| Fuel tank capacity | Aluminum alloy 200L | Aluminum alloy 200L |
| Chassis parameters | ||
| Truck frame size | ||
| Front axle description | 5.5T | 4.5T |
| Front axle allowable load | 6500KG | 6500KG |
| Rear axle description | HY300H | 457 |
| Rear axle allowable load | 11500KG | 11500KG |
| Speed ratio | 9/10+8 | 8/9+7 |
| Number of springs | ||
| Tire | ||
| Tire specifications | 10.00R20 18PR | 10.00R20 18PR |
| Number of tires | 6 | 6 |
| Tire type | ||
| Control configuration | ||
| ABS anti-lock brake | ● | ● |
| Internal configuration | ||
| Multifunction steering wheel | ||
| Air conditioning adjustment form | Manual | Manual |
| Remote Key | ● | |
| Electronic central locking | ● | |
| Brake | ||
| Front wheel brake | drum brake | drum brake |
| Rear wheel brake | drum brake | drum brake |
|
|
